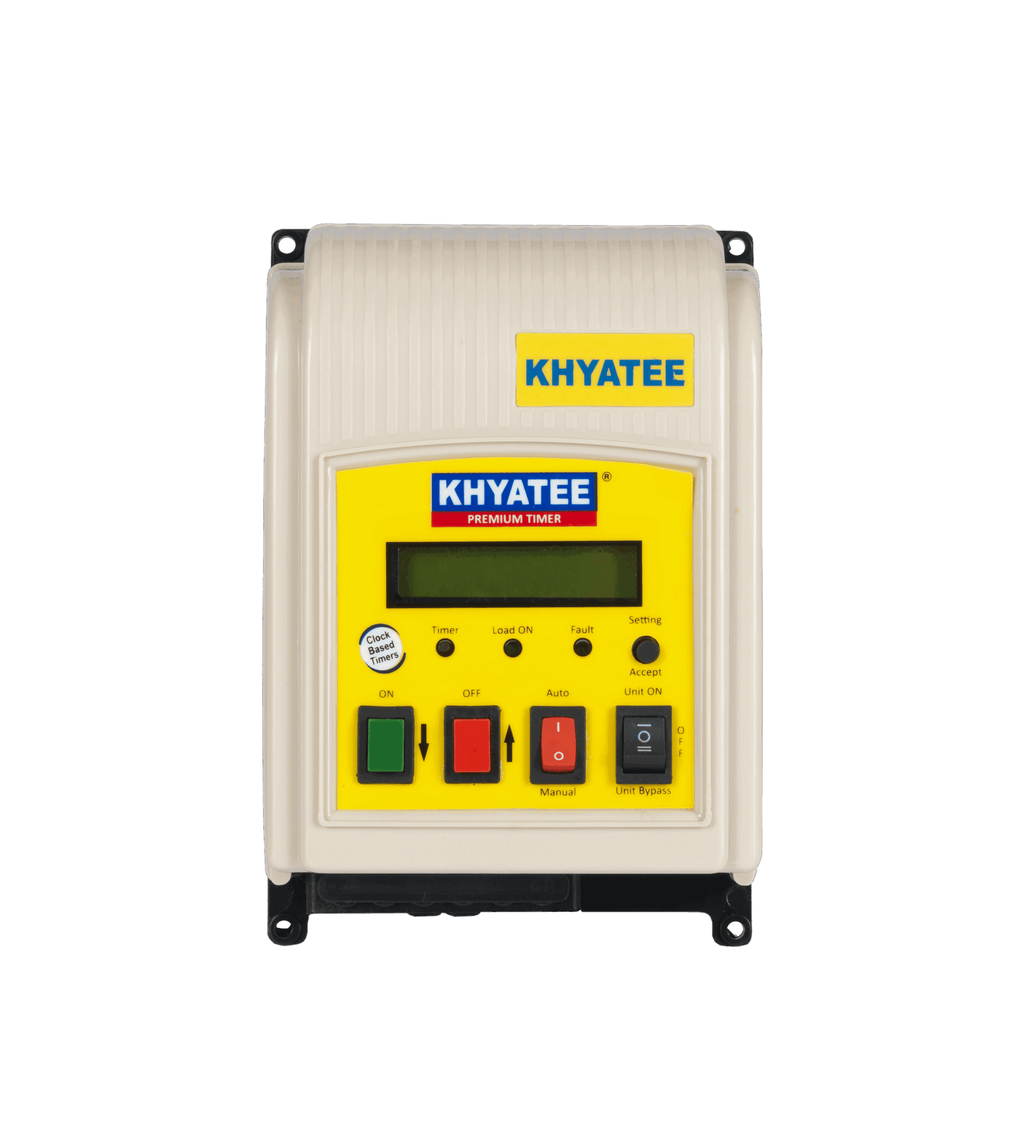

SDT MPA 22
(Timer & Temperature)

For 1Ø/ 3Ø Timer & Temperature Controller

Single / Three Phase Premium Timer & Temperature Controller

KHP DOL product

Features & Benefits

Starter

Electronic starter (Relay Based 40 Amp.)

Display

LCD 16 * 2 Display

Timers

  • Auto Timer: Built-in Real Time Clock (RTC) timer with 4 ON and 4 OFF programmable settings, allowing the load to operate automatically as per the temperature set through PT 100 temperature sensors
  • Manual Timer: Cyclic ON - OFF timer (Site Settable: 1 - 999 min) integrated within the Main Real Time Clock (RTC) Timer, allowing the load to operate at fixed time intervals.

Technology

Microcontroller Software Technology Embedded Controller

Settings

User Friendly One Touch Settings

Others

Supports Connection of 2 Nos PT 100 Temperature Sensors

LED Indications

  • Timer
  • Load ON
  • Fault

Switches

  • Load ON
  • Load OFF
  • Unit ON / Unit OFF / Bypass
  • Setting / Accept

Applications

  • Solar water heater circulation
  • Hot water recirculation in buildings
  • Boiler & heating systems
  • Cooling water circulation
  • Industrial process circulation
  • Swimming pool water circulation

Suitable for Pumpset

  • Centrifugal recirculation pump
  • Inline circulation pump
  • Booster pump
  • Solar circulation pump
  • All types of heater element

Technical Specifications

Single Phase
Power Rating
0.5 - 3kW
Phase
Single
Rated Voltage
220V
Frequency
50Hz
Voltage Range
130-280V
Max. Current
20A
Three Phase
Power Rating
0.5-5.5 kW
Phase
Three
Rated Voltage
440V
Frequency
50Hz
Voltage Range
280-500V
Max. Current
16A

Catalogue

SDT MPA 22 (Timer & Temperature)
