KTP 66 WLC

KTP 66 WLC

For 3Ø DOL Pumpset

Three Phase DOL Pump Starter Controller
with Water Level Controller

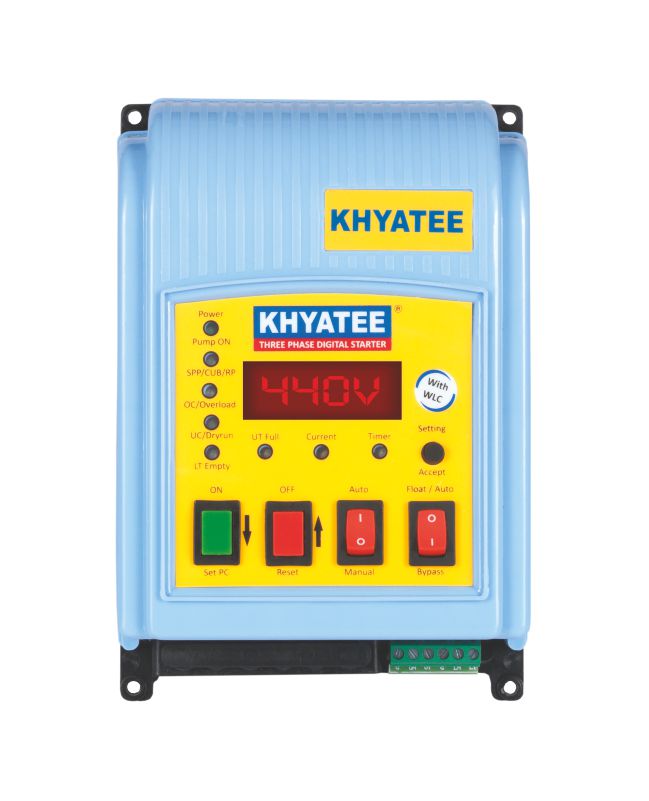

KTP 66 WLC product

Features & Benefits

Starter

Electronic starter (Relay Based 40 Amp. / Phase)

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Phase Failure (Supply Side / Motor Side)
Reverse Phase, Voltage & Current Unbalance
Overload / Over Current (Site Settable)
Dry Run / Under Current (Site Settable)
Extreme High Current
High / Low Voltage (Site Settable)

Timer

Power ON Timer
Dryrun Autostart Timer (Site Settable: Off-1-999 min)
Cyclic ON-OFF Timer (Site Settable: Off-1-999 min)

Technology

Microcontroller Software Technology Embedded Controller

Settings

One-touch Pump Current Settings
Automatic Protection Settings

Others

Two tank fully automatic Water Level Controller
Facility to connect Float Switch / Level Sensors / Magnetic Switch etc

LED Indications

Power / Pump ON
SPP / CUB / RP
OC / Overload
UC / Dryrun
LT Empty
UT Full
Current
Timer

Switches

ON / Set PC
OFF / Reset
Auto / Manual
Float Auto / Bypass
Setting / Accept

Applications

Construction site
Domestic and community water supply
Water supplies for high rise building
Flood water handling
Small farm irrigation
Industrial machines, fans & blowers
Dewatering from sumps

Suitable for Pumpset

All types of DOL pumpset
Borewell & openwell submersible DOL pumpset
Centrifugal monoblock DOL pumpset
Dewatering DOL pumpset
Induction motors

Technical Specifications

Power Rating: 0.5 - 7.5 HP
Phase: Three
Rated Voltage: 440V
Frequency: 50Hz
Voltage Range: 280 - 500V
Max. Current: 16A
