KTC 22 WLC

KTC 22 WLC

For 1Ø Openwell Pumpset

Single Phase Openwell Pump Starter
Controller with Run Capacitor and Water Level Controller

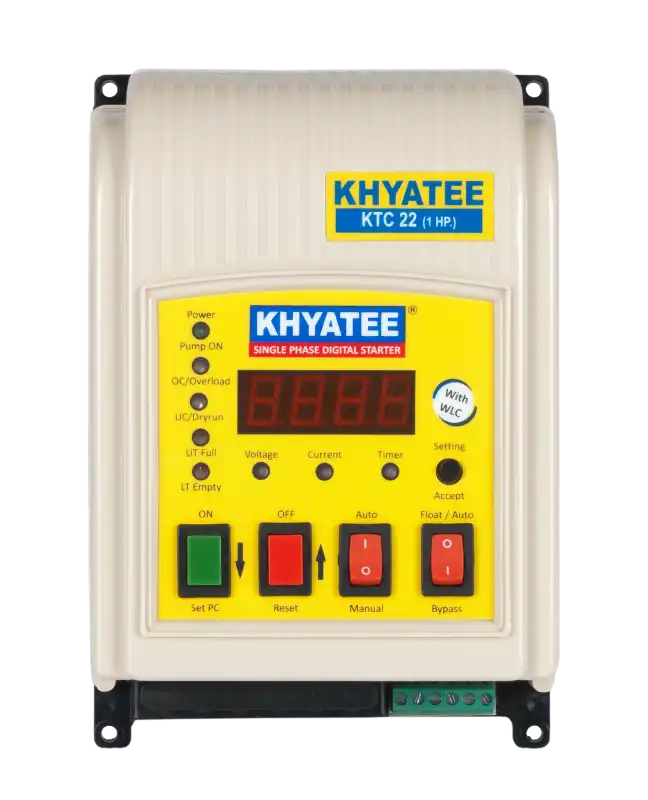

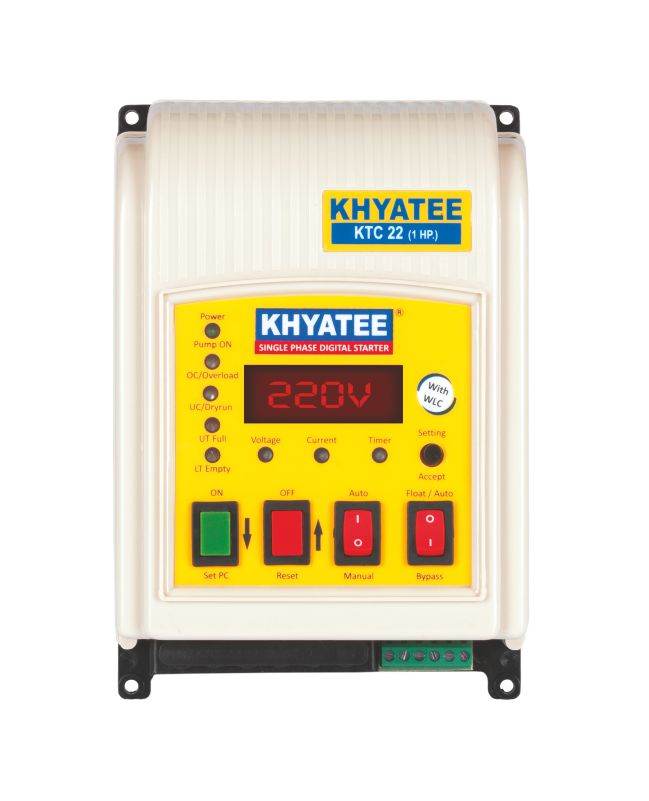

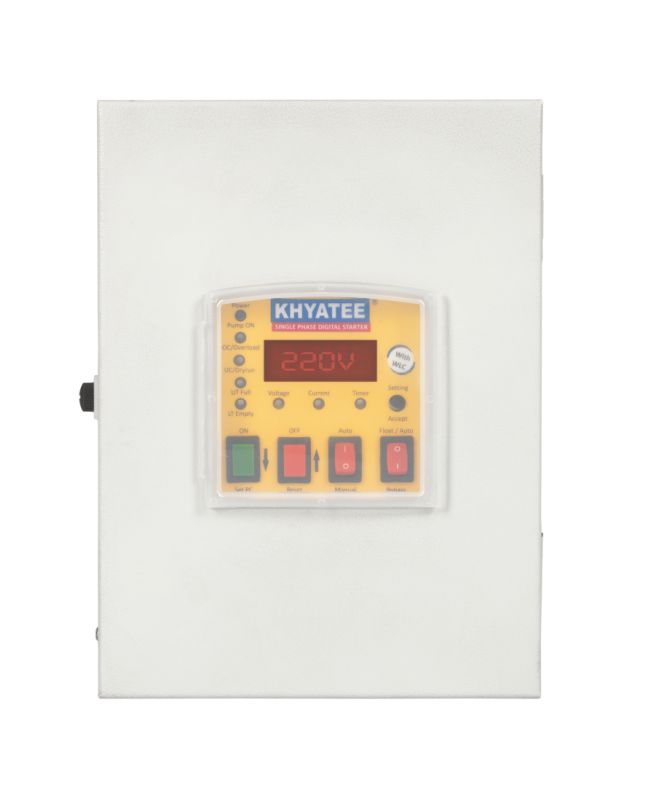

KTC 22 WLC product

Features & Benefits

Starter

Electronic starter (Relay Based 40 Amp.)

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Overload / Over Current (Site Settable)
Dry Run / Under Current (Site Settable)
High / Low Voltage (Site Settable)
Extreme High Current

Timer

Power ON Timer

Technology

Microcontroller Software Technology Embedded Controller

Settings

One-touch Pump Current Settings
Automatic Protection Settings

Others

Two tank fully automatic Water Level Controller
Facility to connect Float Switch / Level Sensors / Magnetic Switch etc

LED Indications

Power / Pump ON
OC / Overload
UC / Dryrun
UT Full
LT Empty
Voltage
Current
Timer

Switches

ON / Set PC
OFF / Reset
Auto / Manual
Float Auto / Bypass
Setting / Accept

Applications

Water supply to single / multiple overhead tanks
Lifting water to apartments, bungalows etc
Domestic and community water supply
Sprinkler & drip irrigation

Suitable for Pumpset

Openwell submersible pumpset
Any pumpset with run capacitor requirements

Technical Specifications

Power Rating: 0.5 - 3.0 HP
Phase: Single
Rated Voltage: 220V
Frequency: 50Hz
Voltage Range: 130 - 280V
Max. Current: 20A

Catalogue

KTC 22 WLC
