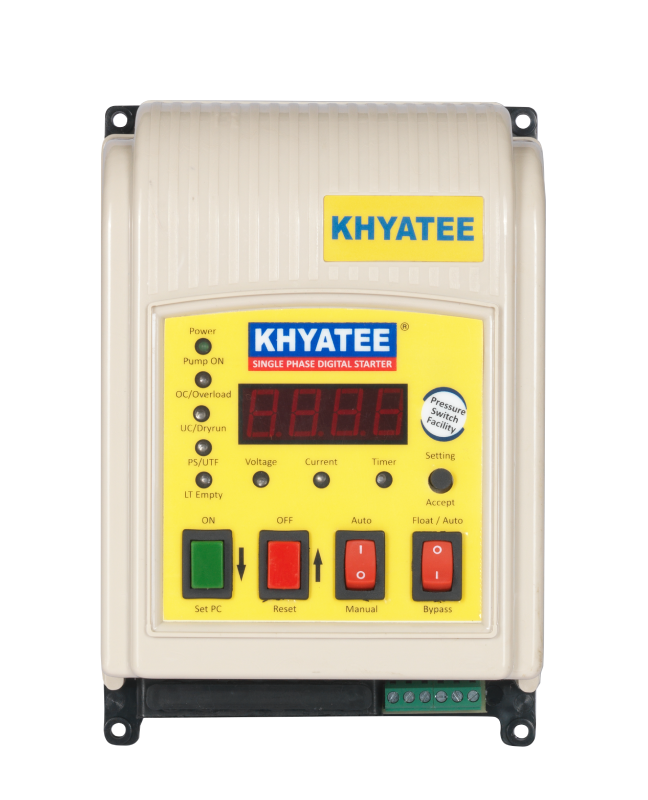

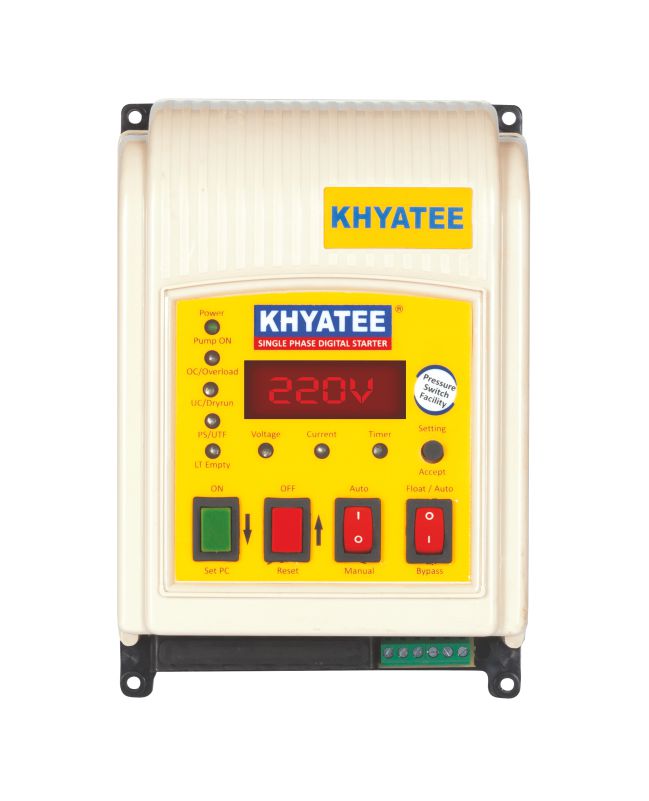

KTC 22 BOOSTER

KTC 22 BOOSTER

For 1Ø Pressure Booster Pumpset

Single Phase Booster Pump Starter Controller
with Water Level Controller for Pressure Switch Applications

KTC 22 BOOSTER product

Features & Benefits

Starter

Electronic starter (Relay Based 40 Amp.)

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Overload / Over Current (Site Settable)
Dry Run / Under Current (Site Settable)
High / Low Voltage (Site Settable)
Extreme High Current

Timer

Power ON Timer
Toggle Timer (Site Settable: Off - 1 - 999 min)

Technology

Microcontroller Software Technology Embedded Controller

Settings

One-touch Pump Current Settings
Automatic Protection Settings

Others

Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications

LED Indications

Power / Pump ON
OC / Overload
UC / Dryrun
PS / UTF
LT Empty
Voltage
Current
Timer

Switches

ON / Set PC
OFF / Reset
Auto / Manual
Float Auto / Float Bypass
Setting / Accept

Applications

Tap feeding / domestic water pressure boosting
Overhead tank water distribution
Bathroom & shower pressure boosting
Garden irrigation & lawn sprinklers
Car washing systems

Suitable for Pumpset

Mini self-priming pump
Domestic booster pump
Inline pressure booster pump

Technical Specifications

Power Rating: 0.5 - 3.0 HP
Phase: Single
Rated Voltage: 220V
Frequency: 50Hz
Voltage Range: 130 - 280V
Max. Current: 20A
