KPM 33 BORE

KPM 33 BORE

For 3Ø DOL Pumpset

Three Phase DOL Pump Starter Controller
with Water Level Controller

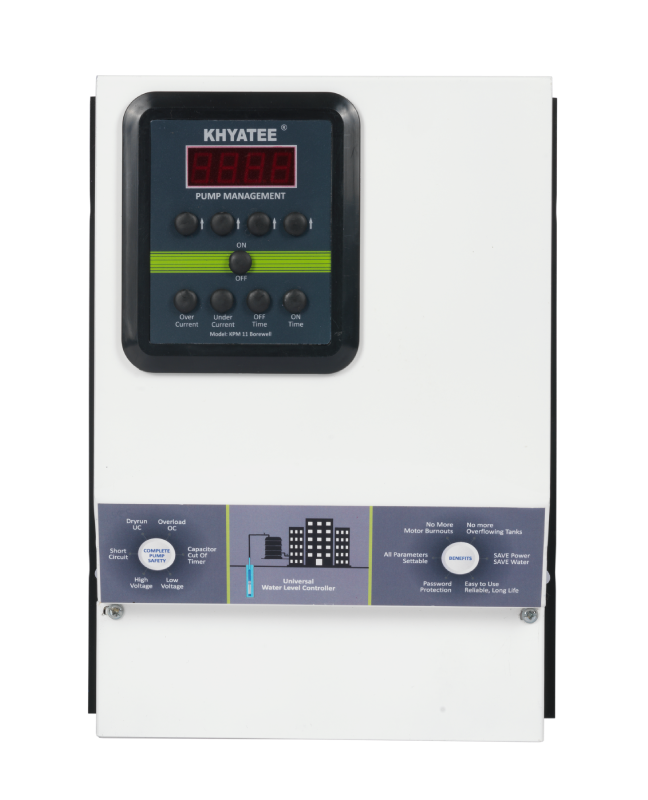

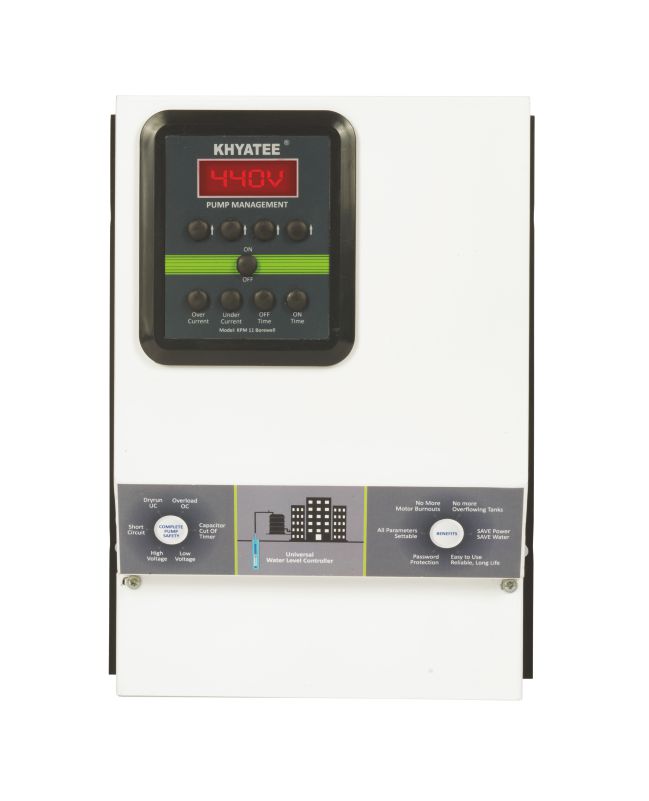

KPM 33 BORE product

Features & Benefits

Starter

Electronic starter (Relay Based 40 Amp. / Phase)

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Phase Failure (Supply Side)
Reverse Phase, Voltage Unbalance
Overload / Over Current (Site Settable)
Dry Run / Under Current (Site Settable)
High / Low Voltage (Site Settable)
Extreme High Current

Timer

Cyclic ON-OFF Timer (Site Settable: Off-1-999 min)

Technology

Microcontroller Software Technology Embedded Controller

Settings

One-touch Pump Current Settings
Automatic Protection Settings
Password Protection for Settings

Others

Borewell Automation Controller
Facility to connect Float Switch / Level Sensors for Upper Tank

Switches

Value Setting (4 Switches)
ON / OFF
Over Current
Under Current
OFF Time
ON Time

Applications

Construction site water supply
Water supply for schools, hospitals & institutions
Domestic water supply for houses & apartments
Gardening and small farm irrigation
Agricultural irrigation in farms & fields

Suitable for Pumpset

Borewell submersible pumpset
Openwell submersible pumpset
All types of DOL pumpset

Technical Specifications

Power Rating: 0.5 - 7.5 HP
Phase: Three
Rated Voltage: 440V
Frequency: 50Hz
Voltage Range: 280 - 500V
Max. Current: 16A

Catalogue

KPM 33 BORE
