KPM 11 BORE

KPM 11 BORE

For 1Ø Submersible Pumpset

Single Phase Submersible Pump Starter
Controller with Start & Run Capacitors and Water Level Controller

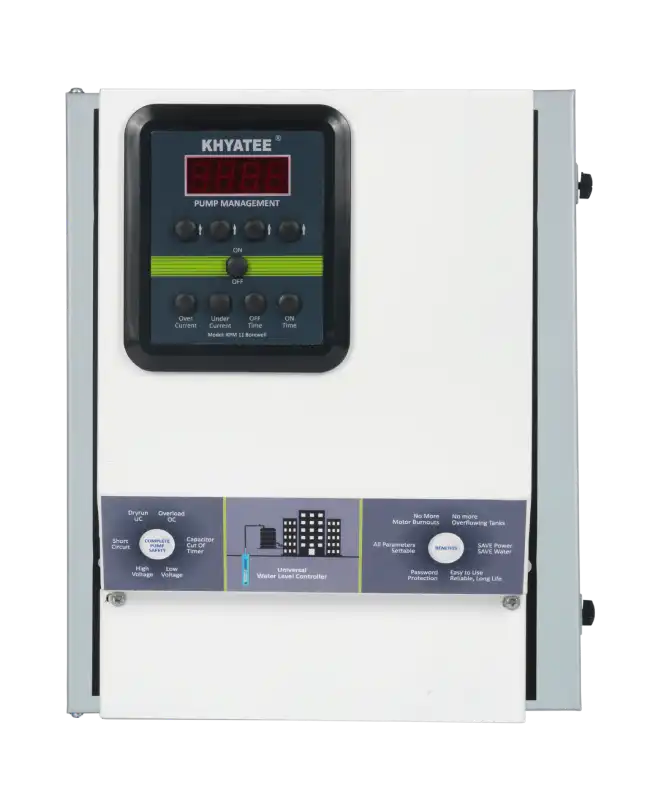

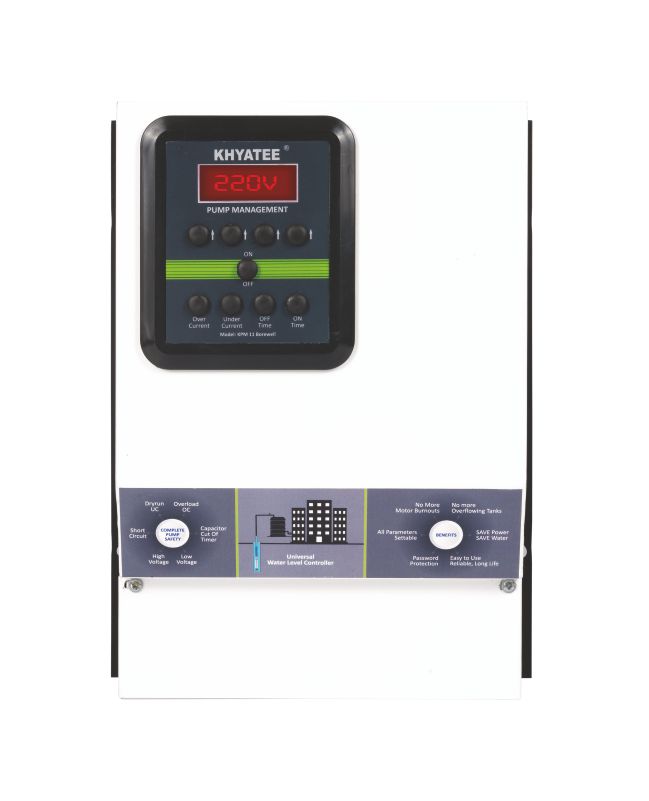

KPM 11 BORE product

Features & Benefits

Starter

Electronic starter (Relay Based 40 Amp.)

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Overload / Over Current (Site Settable)
Dry Run / Under Current (Site Settable)
High / Low Voltage (Site Settable)
Extreme High Current

Timer

Cyclic ON-OFF Timer (Site Settable: Off-1-999 min)

Technology

Microcontroller Software Technology Embedded Controller

Settings

One-touch Pump Current Settings
Automatic Protection Settings
Password Protection for Settings

Others

Borewell Automation Controller
Facility to connect Float Switch / Level Sensors for Upper Tank

Switches

Value Setting (4 Switches)
ON / OFF
Over Current
Under Current
OFF Time
ON Time

Applications

Construction site water supply
Water supply for schools, hospitals & institutions
Domestic water supply for houses & apartments
Gardening and small farm irrigation
Agricultural irrigation in farms & fields

Suitable for Pumpset

Borewell submersible pumpset
Any pumpset with start & run capacitor requirements

Technical Specifications

Power Rating: 0.5 - 2.0 HP
Phase: Single
Rated Voltage: 220V
Frequency: 50Hz
Voltage Range: 130 - 280V
Max. Current: 20A
