KHP SUB

KHP SUB

Single Phase Submersible Multi Pump
Fixed Speed Automation Controller with Start & Run Capacitors

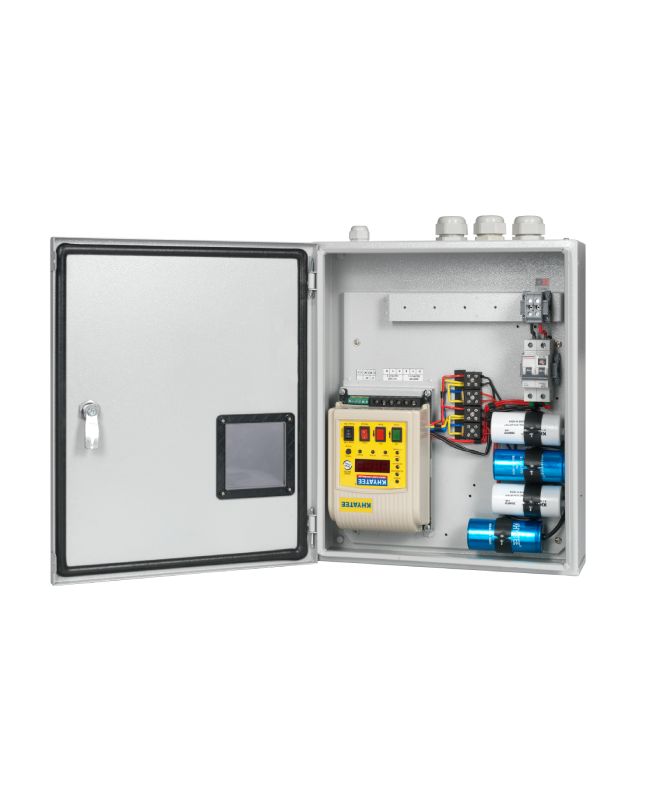

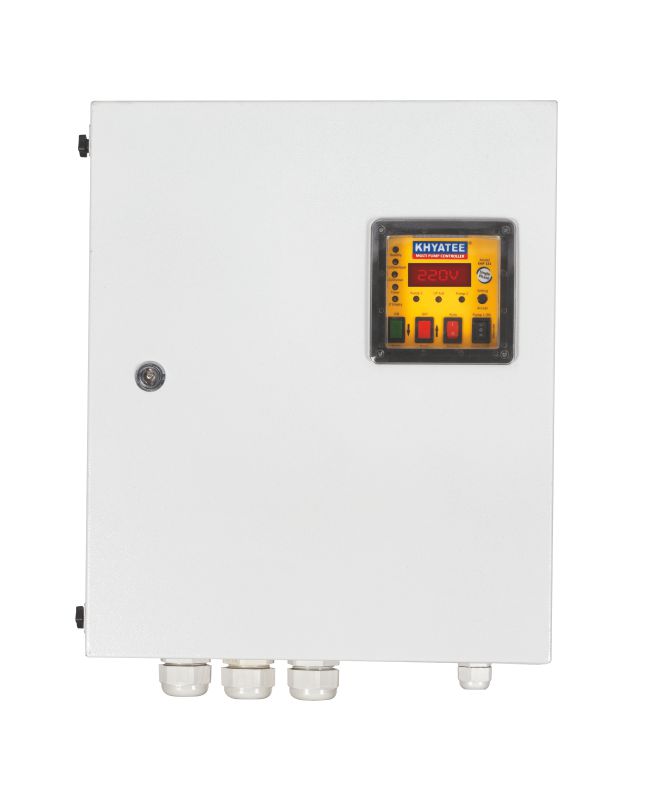

KHP SUB product

Features & Benefits

Segment Models

Multi Pump

Starter

Electronic starter (Relay Based 40 Amp.)

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Overload / Over Current (Site Settable)
Dryrun / Under Current (Site Settable)

Timer

Power ON Timer
Dryrun Autostart Timer (Site Settable: Off - 1 - 999 min)
Toggle Timer (Site Settable: Off - 1 - 999 min)
Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 1 - 999 min)

Technology

Microcontroller Software Technology Embedded Controller

Settings

All Parameters Fully Configurable at Site

Others

Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications

LED Indications

Healthy
OC / Overload
UC / Dryrun
Timer
LT Empty
Pump 1
UT Full
Pump 2

Switches

ON / Set PC
OFF / Reset
Auto / Manual
Pump 1 / Alternate / Pump 2
Setting / Accept

Applications

Borewell water pumping systems
Overhead tank filling and level maintenance
Agricultural and landscape irrigation systems
Water supply systems for residential and commercial buildings

Suitable for Pumpset

Borewell submersible pumpset
Openwell submersible pumpset
Vertical openwell pumpset
Any pumpset with start & run capacitor requirements

Technical Specifications

Power Rating: 0.5 - 2.0 kW
Phase: Single
Rated Voltage: 220V
Frequency: 50Hz
Voltage Range: 130 - 280V
Max. Current: 20A
