KHP STP

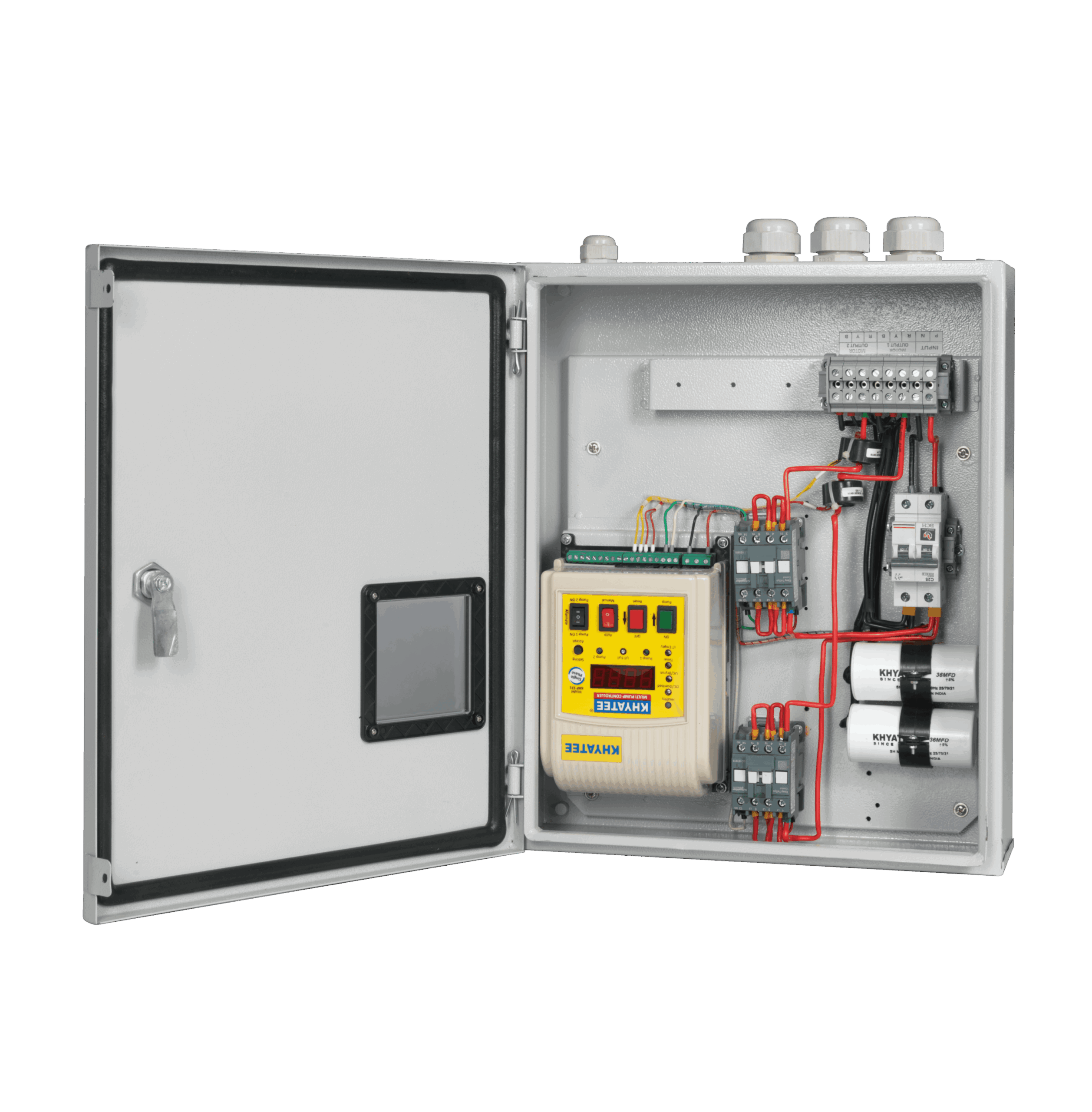

Single Phase Openwell Multi Pump Fixed Speed Automation Controller with Run Capacitors

Features & Benefits

Segment Models: Multi Pump
Starter: Contactor based starter, MCB Included (Premium), Electronic starter (Relay Based 40 Amp.) Lite
Display: Seven Segment Display - Digital Voltmeter & Ammeter
Protections: Overload / Over Current (Site Settable) Dryrun / Under Current (Site Settable)
Timer: Power ON Timer, Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min), Toggle Timer (Site Settable: Off - 5 - 720 min), Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 5 - 720 min)
Technology: Microcontroller Software Technology Embedded Controller
Settings: All Parameters Fully Configurable at Site
Others (features): Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications
  • Healthy
  • OC / Overload
  • UC / Dryrun
  • Timer
  • LT Empty
  • Pump 1
  • UT Full
  • Pump 2
  • ON / Set PC
  • OFF / Reset
  • Auto / Manual
  • Pump 1 / Alternate / Pump 2
  • Setting / Accept
  • Openwell Water Pumping Systems
  • Overhead Tank Filling and Level Maintenance
  • Water Transfer from Wells to Storage Tanks
  • Water Supply Systems for Commercial Buildings
  • Openwell submersible pumpset
  • Vertical openwell Pumpset
  • Any pumpset with run capacitor requirements
Technical Specifications Details
Power Rating 0.5 - 2.0 HP
Phase Single
Rated Voltage 220V
Frequency 50Hz
Voltage Range 160 - 280V
Max Current 20A
