KHP SD

KHP SD

For 3Ø Star Delta Multi Pumpset

Three Phase Star Delta Multi Pump
Fixed Speed Automation Controller

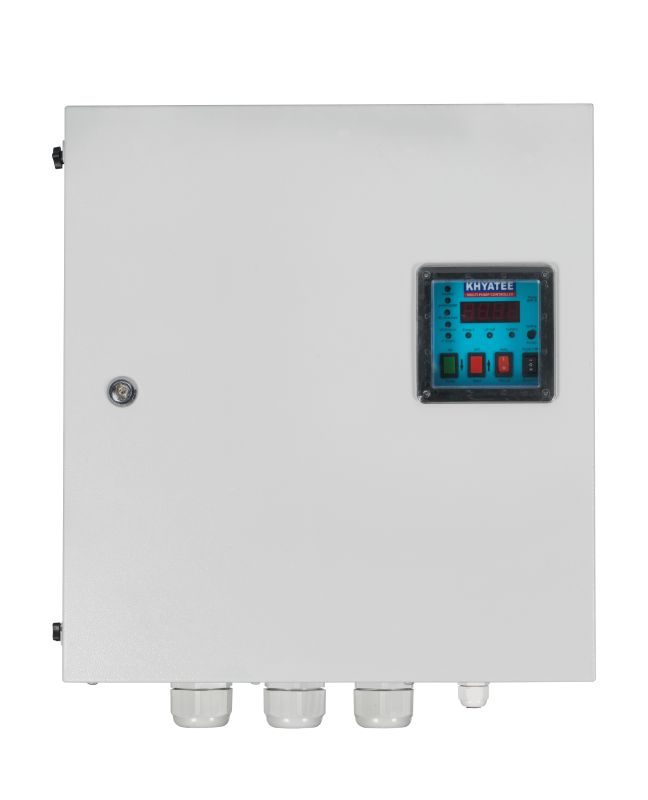

KHP SD product

Features & Benefits

Starter

Contactor based starter, MCB Included

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Phase Failure (Supply Side)
Reverse Phase, Voltage Unbalance
Overload / Over Current (Site Settable)
Dryrun / Under Current (Site Settable)

Timer

Power ON Timer
Dryrun Autostart Timer (Site Settable: Off - 1 - 999 min)
Toggle Timer (Site Settable: Off - 1 - 999 min)
Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 1 - 999 min)

Technology

Microcontroller Software Technology Embedded Controller

Settings

All Parameters Fully Configurable at Site

Others

Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications

LED Indications

Healthy
SPP / VUB / RP
OC / Overload
UC / Dryrun
LT Empty
Pump 1
UT Full
Pump 2

Switches

ON / Set PC
OFF / Reset
Auto / Manual
Pump 1 / Alternate / Pump 2
Setting / Accept

Applications

Booster pumps in high-rise buildings
Hydro-pneumatic water supply systems
Industrial pressure boosting pumps
Fire line main pump systems
Process water pressure systems in industries

Suitable for Pumpset

Submersible / openwell star delta pumpset
End suction centrifugal star delta pumpset
Vertical multistage star delta pumpset
Horizontal split case star delta pumpset
Fire fighting main pump star delta pumpset

Technical Specifications

Power Rating: 0.5 - 60 HP
Phase: Three
Rated Voltage: 440V
Frequency: 50Hz
Voltage Range: 280 - 500V
