For 3Ø DOL Multi Pumpset

Three Phase DOL Multi Pump
Fixed Speed Automation Controller

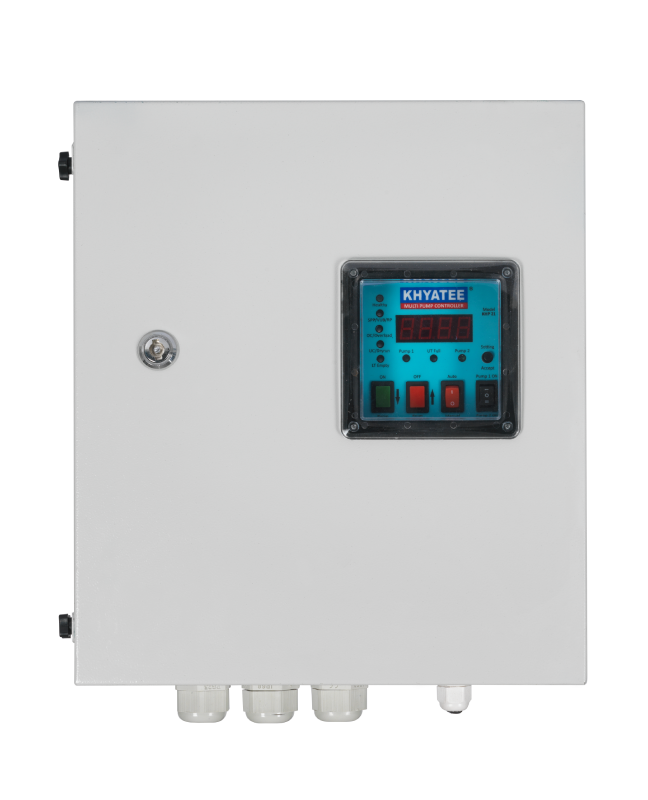

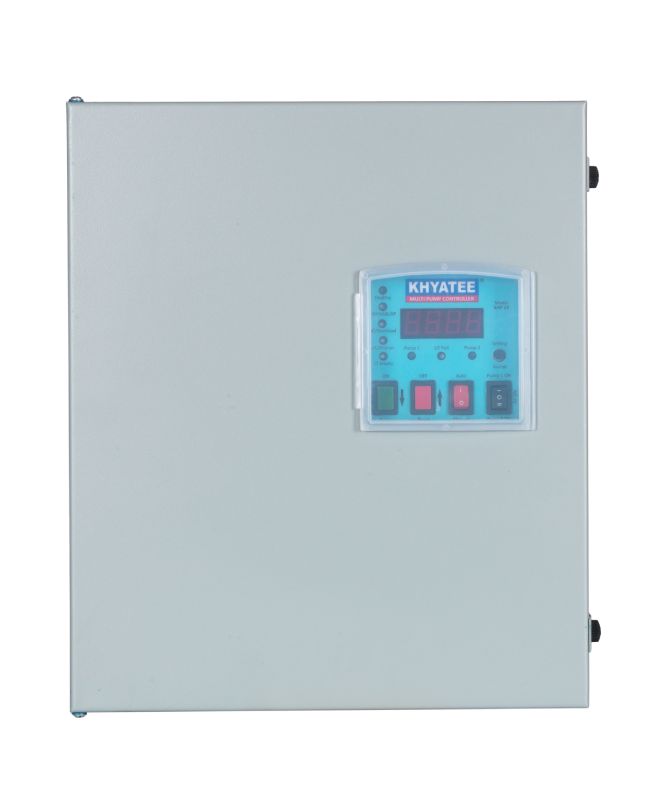

KHP DOL product

Features & Benefits

Starter

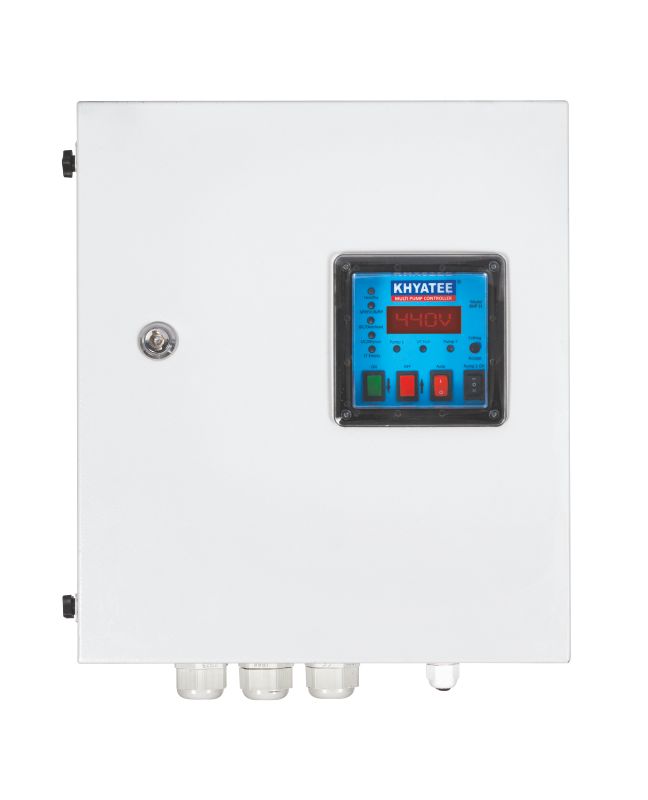

Premium / Classic - Contactor based starter, MCB Included

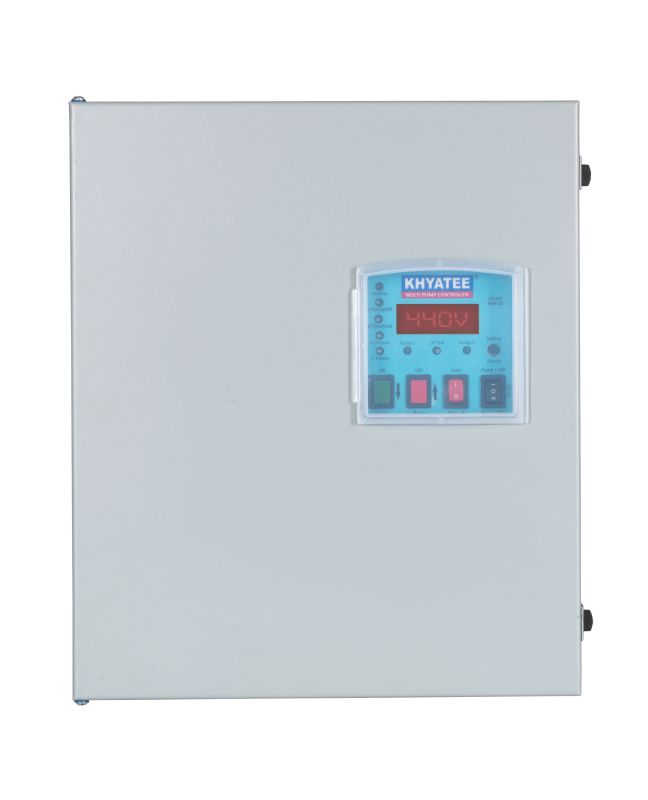

Lite - Electronic starter (Relay Based 40 Amp.)

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Phase Failure (Supply Side)
Reverse Phase, Voltage Unbalance
Overload / Over Current (Site Settable)
Dryrun / Under Current (Site Settable)

Timer

Power ON Timer
Dryrun Autostart Timer (Site Settable: Off - 1 - 999 min)
Toggle Timer (Site Settable: Off - 1 - 999 min)
Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 1 - 999 min)

Technology

Microcontroller Software Technology Embedded Controller

Settings

All Parameters Fully Configurable at Site

Others

Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications

LED Indications

Healthy
SPP / VUB / RP
OC / Overload
UC / Dryrun
LT Empty
Pump 1
UT Full
Pump 2

Switches

ON / Set PC
OFF / Reset
Auto / Manual
Pump 1 / Alternate / Pump 2
Setting / Accept

Applications

Water transfer booster systems
AHU in HVAC systems
Industrial water pressure control
Fire line jockey pump systems

Suitable for Pumpset

Centrifugal monoblock pumpset
End suction pumpset
Multistage booster pumpset
Air handling unit (AHU)

Technical Specifications

Power Rating: 0.5 - 5.0 HP / 7.5 HP
Phase: Three
Rated Voltage: 440V
Frequency: 50Hz
Voltage Range: 280 - 500V
Max. Current: 16A
