KHP DOL DW

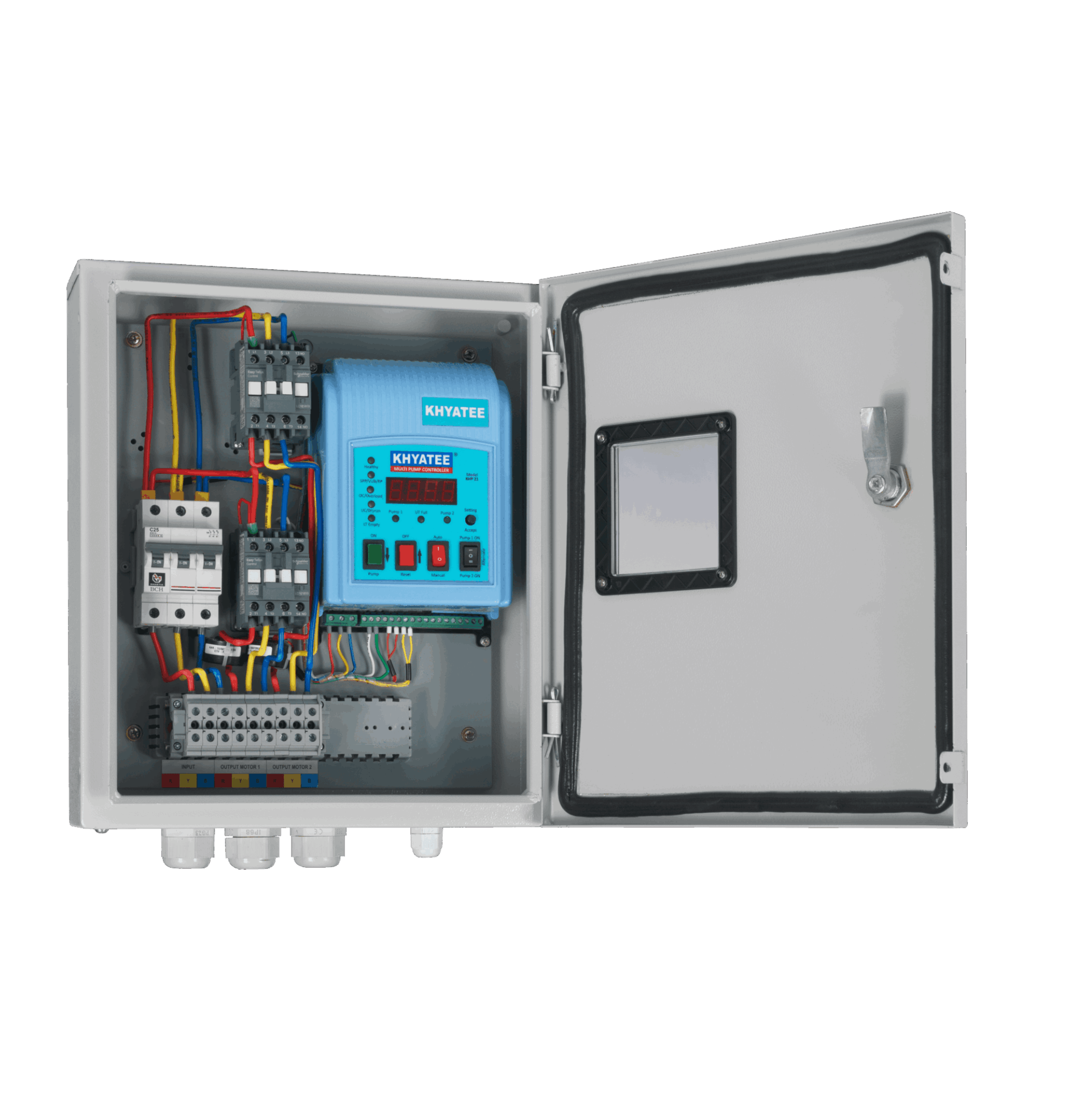

Three Phase DOL Multi Pump Fixed Speed Automation Controller

Features & Benefits

Segment Models: Multi Pump
Starter: Contactor based starter, MCB Included (Premium), Contactor based starter, MCB Included (Classic), Electronic starter (Relay Based 40 Amp.) Lite
Display: Seven Segment Display - Digital Voltmeter & Ammeter
Protections:

  • Phase Failure (Supply Side)

  • Reverse Phase

  • Voltage Unbalance

  • Overload / Over Current (Site Settable)

  • Dry Run / Under Current (Site Settable)
Timer: Power ON Timer, Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min), Toggle Timer (Site Settable: Off - 5 - 720 min), Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 5 - 720 min)
Technology: Microcontroller Software Technology Embedded Controller
Settings: All Parameters Fully Configurable at Site
Others (features): Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications
  • Healty
  • SPP/VUB/RP
  • OC / Overload
  • UC / Dryrun
  • LT Empty
  • Pump 1
  • UT Full
  • Pump 2
  • ON / Set PC
  • OFF / Reset
  • Auto / Manual
  • Pump 1 / Alternate / Pump 2
  • Setting / Accept
  • Water transfer booster systems
  • AHUs in HVAC Systems
  • Industrial water pressure control
  • Fire line jockey pump systems
  • Centrifugal Monoblock Pumpsets End Suction Pumpsets Multistage Booster Pumpsets Air Handling Units (AHUs)
Technical Specifications Details
Power Rating 0.5 - 5.0 HP / 7.5 HP
Phase Three
Rated Voltage 440V
Frequency 50Hz
Voltage Range 280 - 480V
Max Current 16A
