KDP 22 UTF

KDP 22 UTF

For 1Ø Submersible Pumpset

Single Phase Submersible Pump Starter
Controller with Start, Run Capacitors and Upper Tank Automation.

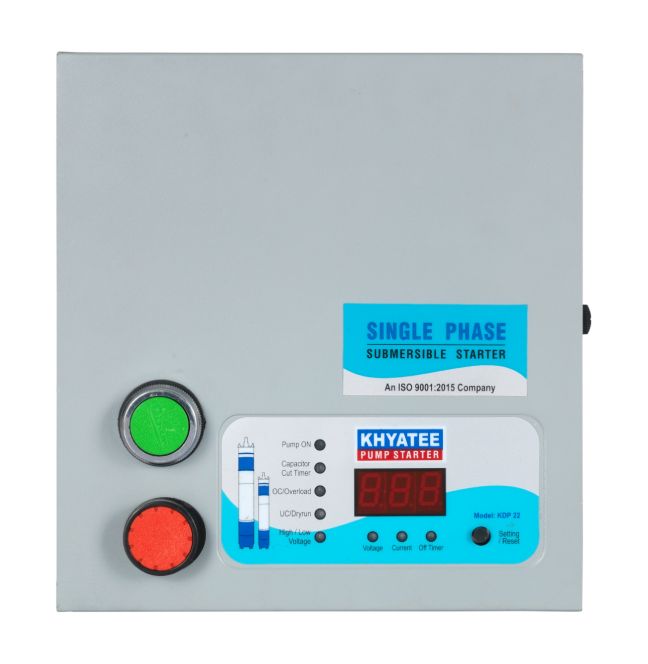

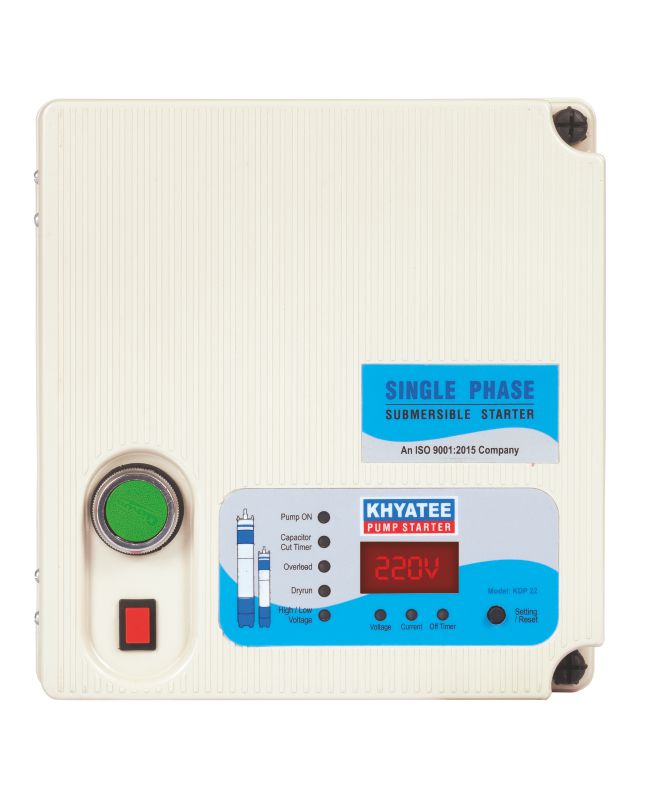

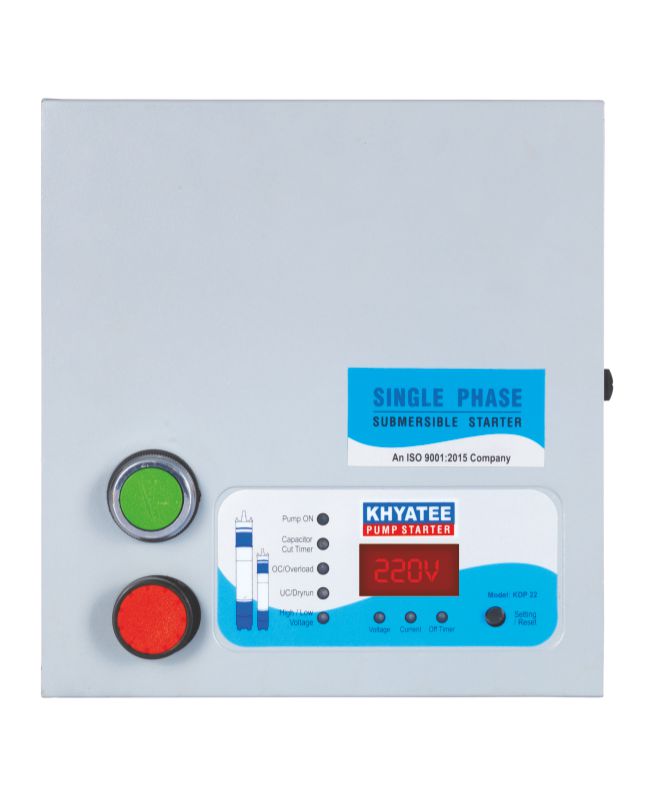

KDP 22 UTF product

Features & Benefits

Segment Models

Semi Automatic

Starter

Electronic starter (Relay Based 40 Amp.)

Display

Seven Segment Display - Digital Voltmeter & Ammeter

Protections

Overload / Over Current (Site Settable)
Dry Run / Under Current (Site Settable)
High / Low Voltage (Site Settable)
Extreme High Current
Capacitor Cut Off Timer

Timer

OFF Timer (Site Settable: Off - 1 - 999 min)

Technology

Microcontroller Software Technology Embedded Controller

Settings

One-touch Pump Current Setting

Automatic Protection Settings

LED Indications

Power
Pump ON
Capacitor Cut-Off Timer
OC / Overload
UC / Dryrun
High/Low Voltage
Voltage
Current
Off Timer

Switches

Pump ON
Pump OFF
Setting / Reset

Applications

Construction site
Domestic and community water supply
Water supplies for high-rise building
Rural water supply
Irrigation in Horticulture & Agriculture

Suitable for Pumpset

Borewell Submersible Pumpset
Openwell Submersible Pumpset
Vertical openwell Pumpset
Any pumpset with Start & Run Capacitor requirements

Technical Specifications

Power Rating: 0.5 - 2.0 HP / 3.0 HP / 5.0 HP
Phase: Single
Rated Voltage: 220V
Frequency: 50Hz
Voltage Range: 130 - 280V
Max Current: 20A / 26A / 40A
